#include <interactionVertex.h>

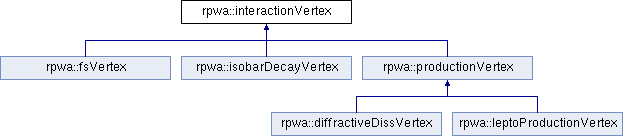

Inheritance diagram for rpwa::interactionVertex:

Public Member Functions
	interactionVertex ()
	interactionVertex (const interactionVertex &vert)
virtual	~interactionVertex ()
interactionVertex &	operator= (const interactionVertex &vert)
interactionVertexPtr	clone (const bool cloneInParticles=false, const bool cloneOutParticles=false) const
	< creates deep copy of interaction vertex; must not be virtual
virtual void	clear ()
bool	operator== (const interactionVertex &rhsVert)
bool	operator!= (const interactionVertex &rhsVert)
virtual bool	addInParticle (const particlePtr &part)
	adds an incoming particle to vertex
virtual bool	addOutParticle (const particlePtr &part)
	adds an outgoing particle to vertex
void	transformOutParticles (const TLorentzRotation &L)
	applies Lorentz-transformation to outgoing particles
unsigned int	nmbInParticles () const
	returns number of incoming particles
unsigned int	nmbOutParticles () const
	returns number of outgoing particles
std::vector< particlePtr > &	inParticles ()
	returns array of incoming particles
std::vector< particlePtr > &	outParticles ()
	returns array of outgoing particles
const std::vector< particlePtr > &	inParticles () const
	returns array of incoming particles
const std::vector< particlePtr > &	outParticles () const
	returns array of outgoing particles
virtual std::ostream &	print (std::ostream &out) const
	prints vertex parameters in human-readable form
virtual std::ostream &	dump (std::ostream &out) const
	prints all vertex data in human-readable form
virtual std::ostream &	printPointers (std::ostream &out) const
	prints particle pointers strored in vertex
virtual std::string	name () const
	returns label used in graph visualization, reporting, and key file

Static Public Member Functions
static bool	debug ()
	returns debug flag
static void	setDebug (const bool debug=true)
	sets debug flag

Protected Member Functions
virtual interactionVertex *	doClone (const bool cloneInParticles, const bool cloneOutParticles) const
	helper function to use covariant return types with smart pointers; needed for public clone()
virtual bool	isEqualTo (const interactionVertex &vert) const
	returns whether vert is equal to this by checking equality of all member variables
void	cloneInParticles ()
	clones all incoming particles
void	cloneOutParticles ()
	clones all outgoing particles

Protected Attributes
std::vector< particlePtr >	_inParticles
	array of pointers to incoming particles
std::vector< particlePtr >	_outParticles
	array of pointers to outgoing particles

Static Private Attributes
static bool	_debug = false
	if set to true, debug messages are printed

Detailed Description

Definition at line 61 of file interactionVertex.h.

Constructor & Destructor Documentation

interactionVertex::interactionVertex ( )

Definition at line 51 of file interactionVertex.cc.

Referenced by doClone().

interactionVertex::interactionVertex ( const interactionVertex & vert )

Definition at line 57 of file interactionVertex.cc.

interactionVertex::~interactionVertex ( )

virtual

Definition at line 63 of file interactionVertex.cc.

Member Function Documentation

bool interactionVertex::addInParticle ( const particlePtr & part )

virtual

adds an incoming particle to vertex

Reimplemented in rpwa::diffractiveDissVertex, rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, and rpwa::fsVertex.

Definition at line 120 of file interactionVertex.cc.

References _debug, and _inParticles.

bool interactionVertex::addOutParticle ( const particlePtr & part )

virtual

adds an outgoing particle to vertex

Reimplemented in rpwa::diffractiveDissVertex, rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, and rpwa::fsVertex.

Definition at line 134 of file interactionVertex.cc.

References _debug, and _outParticles.

void interactionVertex::clear ( )

virtual

Definition at line 96 of file interactionVertex.cc.

References _inParticles, and _outParticles.

interactionVertexPtr rpwa::interactionVertex::clone	(	const bool	cloneInParticles = `false`,
		const bool	cloneOutParticles = `false`
	)		const

inline

< creates deep copy of interaction vertex; must not be virtual

Reimplemented in rpwa::diffractiveDissVertex, rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, and rpwa::fsVertex.

Definition at line 70 of file interactionVertex.h.

References cloneInParticles(), cloneOutParticles(), and doClone().

Referenced by cloneInParticles(), and cloneOutParticles().

void interactionVertex::cloneInParticles ( )

protected

clones all incoming particles

Definition at line 207 of file interactionVertex.cc.

References clone(), i, inParticles(), and nmbInParticles().

Referenced by rpwa::fsVertex::clone(), rpwa::isobarDecayVertex::clone(), clone(), rpwa::leptoProductionVertex::clone(), rpwa::diffractiveDissVertex::clone(), rpwa::fsVertex::doClone(), doClone(), rpwa::diffractiveDissVertex::doClone(), rpwa::isobarDecayVertex::doClone(), and rpwa::leptoProductionVertex::doClone().

void interactionVertex::cloneOutParticles ( )

protected

clones all outgoing particles

Definition at line 217 of file interactionVertex.cc.

References clone(), i, nmbOutParticles(), and outParticles().

Referenced by rpwa::isobarDecayVertex::clone(), clone(), rpwa::leptoProductionVertex::clone(), rpwa::diffractiveDissVertex::clone(), doClone(), rpwa::diffractiveDissVertex::doClone(), rpwa::isobarDecayVertex::doClone(), and rpwa::leptoProductionVertex::doClone().

static bool rpwa::interactionVertex::debug ( )

inlinestatic

returns debug flag

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, rpwa::productionVertex, and rpwa::fsVertex.

Definition at line 98 of file interactionVertex.h.

References _debug.

Referenced by setDebug().

interactionVertex * interactionVertex::doClone	(	const bool	cloneInParticles,
		const bool	cloneOutParticles
	)		const

protectedvirtual

helper function to use covariant return types with smart pointers; needed for public clone()

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, and rpwa::fsVertex.

Definition at line 79 of file interactionVertex.cc.

References _debug, cloneInParticles(), cloneOutParticles(), and interactionVertex().

Referenced by clone().

ostream & interactionVertex::dump ( std::ostream & out ) const

virtual

prints all vertex data in human-readable form

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, and rpwa::fsVertex.

Definition at line 175 of file interactionVertex.cc.

References _inParticles, _outParticles, i, and name().

std::vector<particlePtr>& rpwa::interactionVertex::inParticles ( )

inline

returns array of incoming particles

Definition at line 87 of file interactionVertex.h.

References _inParticles.

Referenced by rpwa::diffractiveDissVertex::beam(), rpwa::leptoProductionVertex::beamLepton(), cloneInParticles(), rpwa::decayTopology::constructDecay(), rpwa::fsVertex::fsParticle(), isEqualTo(), rpwa::isobarDecayVertex::parent(), rpwa::leptoProductionVertex::target(), rpwa::diffractiveDissVertex::target(), and rpwa::leptoProductionVertex::virtPhoton().

const std::vector<particlePtr>& rpwa::interactionVertex::inParticles ( ) const

inline

returns array of incoming particles

Definition at line 89 of file interactionVertex.h.

References _inParticles.

bool interactionVertex::isEqualTo ( const interactionVertex & vert ) const

protectedvirtual

returns whether vert is equal to this by checking equality of all member variables

Reimplemented in rpwa::isobarDecayVertex.

Definition at line 104 of file interactionVertex.cc.

References i, inParticles(), nmbInParticles(), nmbOutParticles(), and outParticles().

Referenced by rpwa::isobarDecayVertex::isEqualTo(), and operator==().

virtual std::string rpwa::interactionVertex::name ( ) const

inlinevirtual

returns label used in graph visualization, reporting, and key file

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, rpwa::productionVertex, and rpwa::fsVertex.

Definition at line 96 of file interactionVertex.h.

Referenced by dump(), print(), and printPointers().

unsigned int rpwa::interactionVertex::nmbInParticles ( ) const

inline

returns number of incoming particles

Definition at line 84 of file interactionVertex.h.

References _inParticles.

Referenced by cloneInParticles(), and isEqualTo().

unsigned int rpwa::interactionVertex::nmbOutParticles ( ) const

inline

returns number of outgoing particles

Definition at line 85 of file interactionVertex.h.

References _outParticles.

Referenced by cloneOutParticles(), isEqualTo(), rpwa::waveDescription::setXDecayKeys(), and transformOutParticles().

bool rpwa::interactionVertex::operator!= ( const interactionVertex & rhsVert )

inline

Definition at line 77 of file interactionVertex.h.

interactionVertex & interactionVertex::operator= ( const interactionVertex & vert )

Definition at line 68 of file interactionVertex.cc.

References _inParticles, and _outParticles.

bool rpwa::interactionVertex::operator== ( const interactionVertex & rhsVert )

inline

Definition at line 76 of file interactionVertex.h.

References isEqualTo().

std::vector<particlePtr>& rpwa::interactionVertex::outParticles ( )

inline

returns array of outgoing particles

Definition at line 88 of file interactionVertex.h.

References _outParticles.

Referenced by cloneOutParticles(), rpwa::isobarDecayVertex::daughter1(), rpwa::isobarDecayVertex::daughter2(), isEqualTo(), rpwa::diffractiveDissVertex::recoil(), rpwa::leptoProductionVertex::recoil(), rpwa::leptoProductionVertex::scatteredLepton(), rpwa::waveDescription::setXDecayKeys(), rpwa::leptoProductionVertex::XParticle(), and rpwa::diffractiveDissVertex::XParticle().

const std::vector<particlePtr>& rpwa::interactionVertex::outParticles ( ) const

inline

returns array of outgoing particles

Definition at line 90 of file interactionVertex.h.

References _outParticles.

ostream & interactionVertex::print ( std::ostream & out ) const

virtual

prints vertex parameters in human-readable form

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, and rpwa::fsVertex.

Definition at line 156 of file interactionVertex.cc.

References _inParticles, _outParticles, i, and name().

Referenced by rpwa::operator<<().

ostream & interactionVertex::printPointers ( std::ostream & out ) const

virtual

prints particle pointers strored in vertex

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, and rpwa::fsVertex.

Definition at line 187 of file interactionVertex.cc.

References _inParticles, _outParticles, i, and name().

static void rpwa::interactionVertex::setDebug ( const bool debug = true )

inlinestatic

sets debug flag

Reimplemented in rpwa::leptoProductionVertex, rpwa::isobarDecayVertex, rpwa::diffractiveDissVertex, rpwa::productionVertex, and rpwa::fsVertex.

Definition at line 99 of file interactionVertex.h.

References _debug, and debug().

void interactionVertex::transformOutParticles ( const TLorentzRotation & L )

applies Lorentz-transformation to outgoing particles

Definition at line 148 of file interactionVertex.cc.

References _outParticles, i, and nmbOutParticles().

Member Data Documentation

bool interactionVertex::_debug = false

staticprivate

if set to true, debug messages are printed

Definition at line 118 of file interactionVertex.h.

Referenced by addInParticle(), addOutParticle(), debug(), doClone(), and setDebug().

std::vector<particlePtr> rpwa::interactionVertex::_inParticles

protected

array of pointers to incoming particles

Definition at line 112 of file interactionVertex.h.

Referenced by addInParticle(), clear(), dump(), inParticles(), nmbInParticles(), operator=(), print(), and printPointers().

std::vector<particlePtr> rpwa::interactionVertex::_outParticles

protected

array of pointers to outgoing particles

Definition at line 113 of file interactionVertex.h.

Referenced by addOutParticle(), clear(), dump(), nmbOutParticles(), operator=(), outParticles(), print(), printPointers(), and transformOutParticles().

The documentation for this class was generated from the following files:
